Creates Fagan nomograms for Bayesian analysis in diagnostic testing. A Fagan nomogram is a graphical tool used to estimate post-test probabilities from pre-test probabilities and likelihood ratios. This function supports input via sensitivity/specificity or directly via likelihood ratios.

Usage

nomogrammer(
  Prevalence,
  Sens = NULL,
  Spec = NULL,
  Plr = NULL,
  Nlr = NULL,
  Detail = FALSE,
  NullLine = FALSE,
  LabelSize = (14/5),
  Verbose = FALSE,
  Theme = NULL,
  Title = "Fagan Nomogram",
  PriorLabel = "Prior\nProb.\n(%)",
  PosteriorLabel = "Posterior\nProb.\n(%)",
  DetailLabels = c(prevalence = "Prevalence", plr = "PLR", nlr = "NLR", post_pos =
    "Post(+)", post_neg = "Post(-)"),
  Colors = c(pos = "red", neg = "blue"),
  LegendLabels = NULL
)

Arguments

Prevalence

Prior probability (prevalence) as a number between 0 and 1. This represents the probability of disease before the test is performed.

Sens

Model sensitivity as a number between 0 and 1. The probability that the test is positive when the disease is present. Optional if Plr/Nlr provided.

Spec

Model specificity as a number between 0 and 1. The probability that the test is negative when the disease is absent. Optional if Plr/Nlr provided.

Plr

Positive likelihood ratio (calculated from Sens and Spec if not provided). Must be >= 1. If provided along with Nlr, takes precedence over Sens/Spec.

Nlr

Negative likelihood ratio (calculated from Sens and Spec if not provided). Must be between 0 and 1. If provided along with Plr, takes precedence over Sens/Spec.

Detail

Logical. If TRUE, overlays key statistics (prevalence, likelihood ratios, posterior probabilities) onto the plot.

NullLine

Logical. If TRUE, adds a reference line from prior probability through LR = 1 to illustrate an uninformative test.

LabelSize

Numeric. Controls the size of text labels on the plot. Default is 14/5 ~= 2.8.

Verbose

Logical. If TRUE, prints diagnostic metrics to the console.

Theme

A ggplot2 theme object used as the base theme, for example jamovi's global ggtheme. The nomogram's own structural theme (hidden x axis, no grid, no legend) is layered on top of it, so the layout is preserved. Defaults to theme_bw().

Title

Character. Plot title. Callers inside a jamovi analysis pass a translated string; this function is file-level, so it cannot translate one itself.

PriorLabel

Character. Name of the left (prior probability) axis.

PosteriorLabel

Character. Name of the right (posterior probability) axis.

DetailLabels

Named character vector with the words used in the Detail text: prevalence, plr, nlr, post_pos, post_neg. Callers inside a jamovi analysis pass translated strings (this function cannot translate them itself).

Colors

Named character vector with the colors of the pos and neg lines. Callers pass .faganColors(choice, theme) so the lines can follow jamovi's palette.

LegendLabels

Named character vector (pos, neg) naming the two lines. When given, a legend is drawn at the bottom; colour is then not the only key to the lines.

Value

A ggplot2 object containing the Fagan nomogram. The plot shows:

  • Left axis: Prior probability (prevalence) as percentages

  • Middle axis: Likelihood ratios

  • Right axis: Posterior probability as percentages

  • Red line: Positive test pathway

  • Blue line: Negative test pathway

Details

The Fagan nomogram visually represents Bayes' theorem for diagnostic testing:

$$Post-test odds = Pre-test odds x Likelihood ratio$$

The function accepts either:

  • Sensitivity and Specificity (traditional approach)

  • Positive and Negative Likelihood Ratios (direct approach)

If both are provided, sensitivity/specificity take precedence and a warning is issued.

Mathematical relationships:

  • PLR = Sensitivity / (1 - Specificity)

  • NLR = (1 - Sensitivity) / Specificity

  • When calculating from LRs: Specificity = (PLR - 1) / (PLR - NLR)

  • When calculating from LRs: Sensitivity = PLR x (1 - Specificity)

  • Post-test probability (+) = (Prevalence x PLR) / ((Prevalence x PLR) + (1 - Prevalence))

  • Post-test probability (-) = (Prevalence x NLR) / ((Prevalence x NLR) + (1 - Prevalence))

Note

This function is used internally by the decision analysis in the ClinicoPath jamovi module for generating Fagan nomograms.

References

Fagan TJ. Letter: Nomogram for Bayes theorem. N Engl J Med. 1975;293(5):257.

Based on Perl web-implementation: https://araw.mede.uic.edu/cgi-bin/testcalc.pl Authors: A.M. Chekroud & A. Schwartz, December 2016

See also

decision, decisioncalculator for related diagnostic test functions

Author

ClinicoPath Development Team

Examples

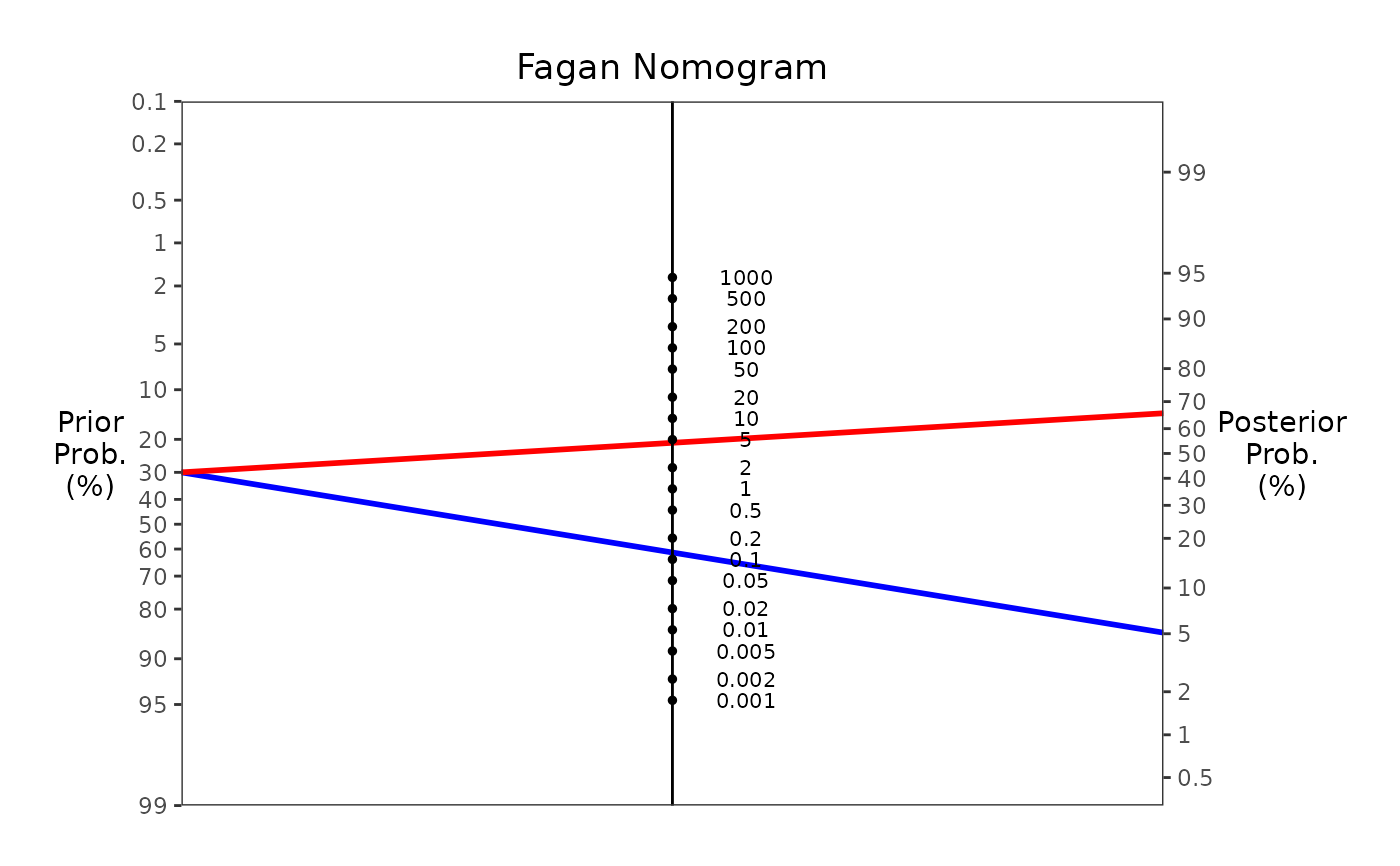

# Example 1: Using sensitivity and specificity
nomogrammer(Prevalence = 0.3, Sens = 0.9, Spec = 0.8)


# Example 2: Using likelihood ratios directly
nomogrammer(Prevalence = 0.3, Plr = 4.5, Nlr = 0.125)

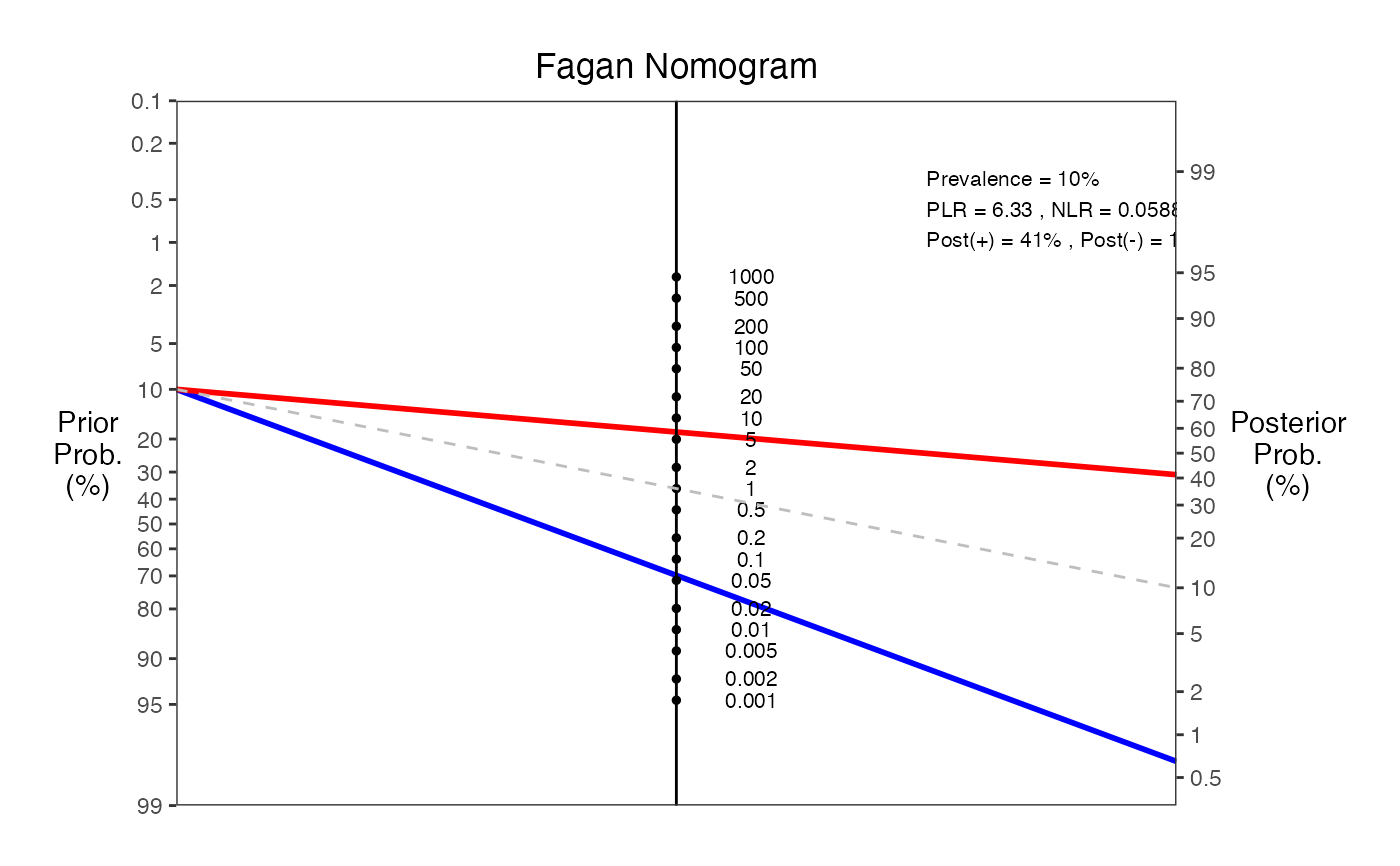

# Example 3: With detailed annotations and null line
nomogrammer(Prevalence = 0.1, Sens = 0.95, Spec = 0.85,
            Detail = TRUE, NullLine = TRUE, Verbose = TRUE)
#>
#> === Fagan Nomogram Results ===
#> Prevalence = 10%
#> Sensitivity = 95%
#> Specificity = 85%
#> Positive LR = 6.33
#> Negative LR = 0.0588
#> Post-test probability (positive test) = 41%
#> Post-test probability (negative test) = 0.649%
#> ===============================

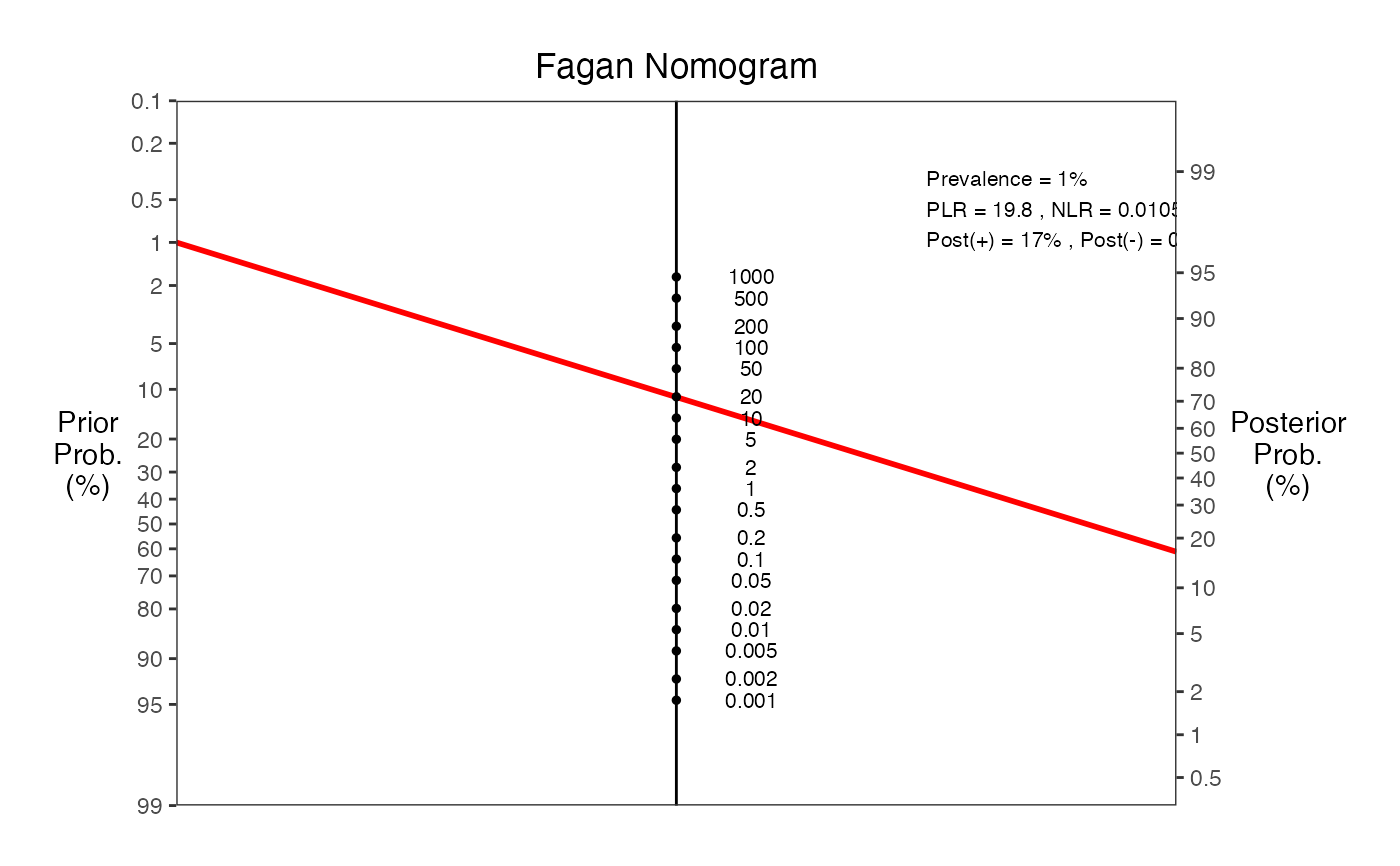

# Example 4: Low prevalence scenario (screening test)
nomogrammer(Prevalence = 0.01, Sens = 0.99, Spec = 0.95, Detail = TRUE)
