Generalized ROC Analysis — generalizedroc • ClinicoPath

Generalized ROC (gROC) Analysis extends traditional binary ROC to handle continuous or ordinal outcomes, particularly when the outcome distributions have unequal variances across groups.

Usage

generalizedroc(
  data,
  outcome,
  predictor,
  assume_equal_variance = FALSE,
  transformation = "none",
  distribution_model = "normal",
  calculate_auc = TRUE,
  confidence_intervals = TRUE,
  ci_method = "bootstrap",
  bootstrap_samples = 1000,
  confidence_level = 0.95,
  show_diagnostics = TRUE,
  variance_test = "levene",
  optimal_threshold = TRUE,
  plot_roc = TRUE,
  plot_distributions = TRUE,
  plot_diagnostic = FALSE,
  random_seed = 42,
  use_tram = FALSE,
  covariates = NULL,
  tram_model = "Colr",
  covariate_values = "0, 0.5, 1",
  plot_covariate_roc = TRUE,
  plot_auc_vs_covariate = TRUE,
  n_covariate_points = 50,
  tram_constraints = "none",
  censoring_aware = FALSE
)

Arguments

data: the data as a data frame
outcome: a string naming the outcome variable (binary or ordinal)
predictor: a string naming the continuous predictor variable
assume_equal_variance: if TRUE, assumes equal variance across groups (standard ROC); if FALSE, allows unequal variances (generalized ROC)
transformation: transformation applied to predictor before analysis
distribution_model: assumed distribution for each group
calculate_auc: calculate area under the generalized ROC curve
confidence_intervals: calculate confidence intervals for AUC and other parameters
ci_method: method for confidence interval calculation
bootstrap_samples: number of bootstrap samples for CI calculation
confidence_level: confidence level for intervals (default: 0.95 for 95 percent CI)
show_diagnostics: show diagnostic tests for normality and variance equality
variance_test: test for equality of variances across groups
optimal_threshold: find optimal threshold using Youden's index

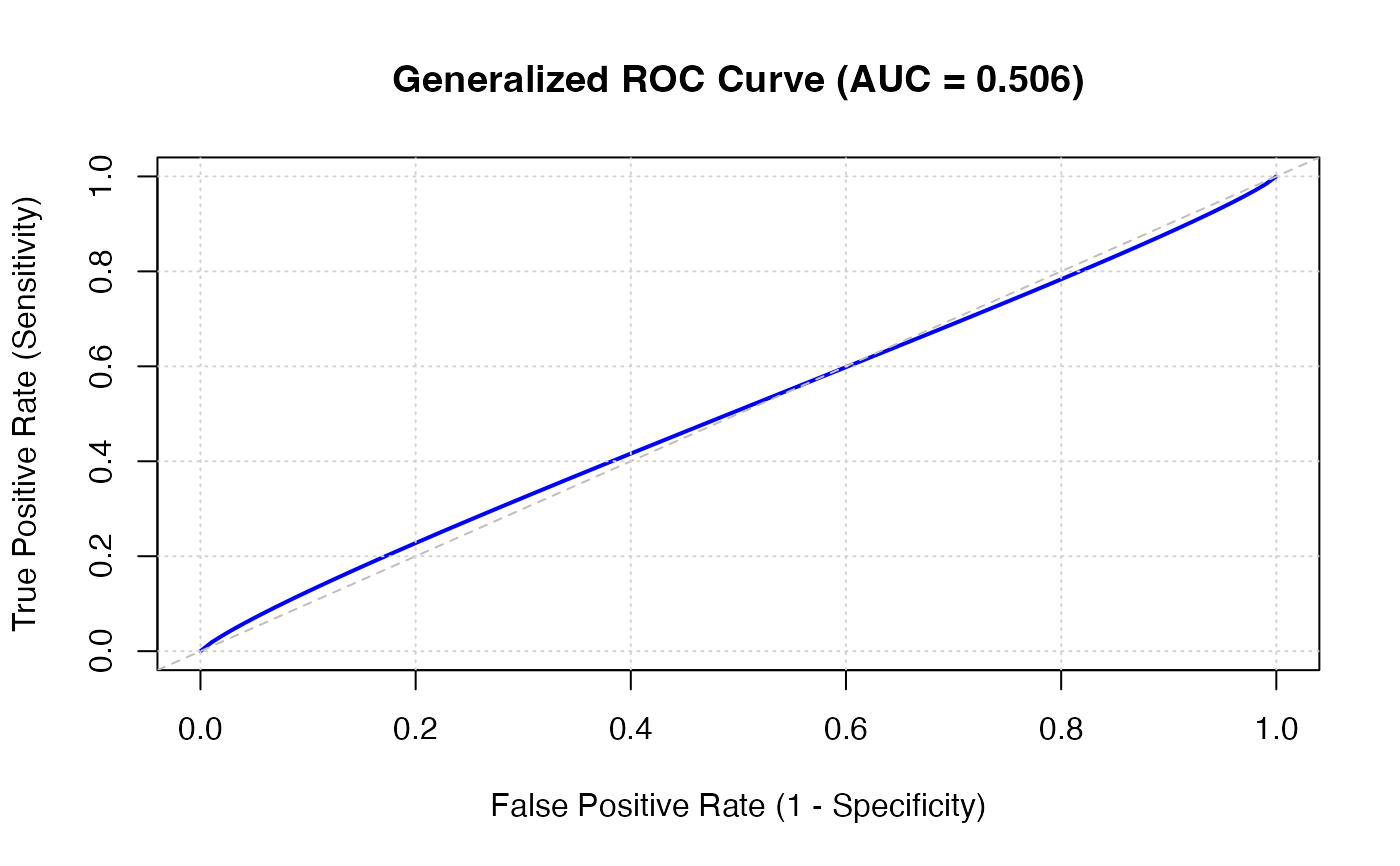

plot_roc: plot the generalized ROC curve

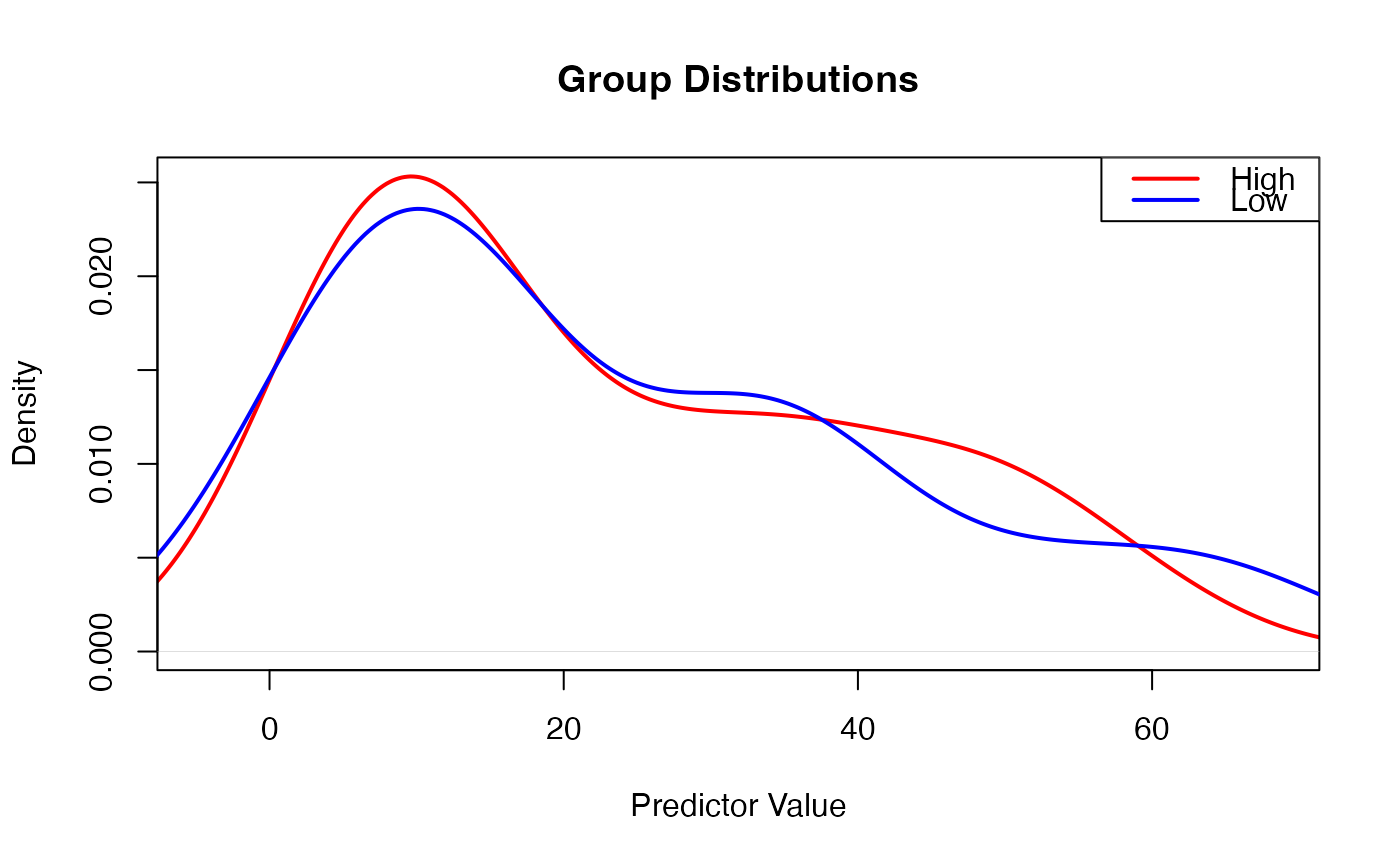

plot_distributions: plot predictor distributions for each outcome group
plot_diagnostic: plot Q-Q plots for normality assessment
random_seed: random seed for reproducible bootstrap sampling
use_tram: Use tram package for covariate-adjusted transformation models
covariates: Covariates to include in transformation model
tram_model: Type of transformation model from tram package
covariate_values: Comma-separated covariate values for ROC evaluation
plot_covariate_roc: Plot ROC curves as function of covariate values
plot_auc_vs_covariate: Plot how AUC changes across covariate values
n_covariate_points: Number of points to evaluate across covariate range
tram_constraints: Constraints on transformation function
censoring_aware: Use censoring-aware transformation models

Value

A results object containing:

`results$instructionsText`					a html
`results$aucTable`					a table
`results$parametersTable`					a table
`results$diagnosticsTable`					a table
`results$thresholdTable`					a table
`results$rocPlot`					an image
`results$distributionPlot`					an image
`results$qqPlot`					an image
`results$interpretationText`					a html

Tables can be converted to data frames with asDF or as.data.frame. For example:

results$aucTable$asDF

as.data.frame(results$aucTable)

Details

This method is particularly useful for continuous biomarkers (PD-L1 CPS, Ki67 percentage), quantitative imaging features, and ordinal scales where traditional ROC assumptions may be violated.

The generalized approach models the full distribution rather than imposing binary cutoffs, providing more flexible and robust performance assessment.

Examples

# \donttest{
# Example with continuous Ki67 percentage
data <- data.frame(
  outcome = factor(sample(c("Low", "High"), 100, replace=TRUE)),
  ki67_percent = c(rnorm(50, 10, 5), rnorm(50, 40, 15))
)

generalizedroc(
  data = data,
  outcome = 'outcome',
  predictor = 'ki67_percent',
  assume_equal_variance = FALSE,
  transformation = 'none'
)
#>
#>  GENERALIZED ROC ANALYSIS
#>
#>  Generalized ROC Analysis
#>
#>  Generalized ROC extends traditional binary ROC to handle continuous
#>  outcomes with potentially unequal variances.
#>
#>
#>
#>  When to Use:
#>
#>
#>  Continuous biomarkers: PD-L1 CPS, Ki67 percentage, quantitative
#>  imaging
#>  Unequal variances: When outcome groups have different spreads
#>  Non-normal distributions: With appropriate transformations or
#>  non-parametric methods
#>
#>
#>
#>  Key Differences from Standard ROC:
#>
#>
#>  Standard ROC: Assumes equal variances (or uses rank-based methods)
#>  Generalized ROC: Models full distribution with unequal variances
#>  Interpretation: Same AUC scale (0.5-1.0), but accounts for
#>  heteroscedasticity
#>
#>
#>  Generalized ROC Performance
#>  ───────────────────────────────────────────────────────────────────────────
#>    AUC          Lower CI     Upper CI     Standard Error    Interpretation
#>  ───────────────────────────────────────────────────────────────────────────
#>    0.5055150    0.3928485    0.6158149        0.05856590    Fail
#>  ───────────────────────────────────────────────────────────────────────────
#>
#>
#>  Distribution Parameters
#>  ──────────────────────────────────────────────────────────────────────────────
#>    Group    N     Mean        SD          Variance    Skewness     Kurtosis
#>  ──────────────────────────────────────────────────────────────────────────────
#>    High     43    23.22604    17.47268    305.2946    0.5672276    -1.0721671
#>    Low      57    23.58519    19.22580    369.6314    0.7481194    -0.4881012
#>  ──────────────────────────────────────────────────────────────────────────────
#>
#>
#>  Distribution Diagnostics
#>  ───────────────────────────────────────────────────────────────────────────────
#>    Test                   Statistic    p            Result
#>  ───────────────────────────────────────────────────────────────────────────────
#>    Shapiro-Wilk (High)    0.8985602    0.0011317    Non-normal (p < 0.05)
#>    Shapiro-Wilk (Low)     0.9133246    0.0005915    Non-normal (p < 0.05)
#>    Levene's Test          0.1015641    0.7506389    Equal variances (p ≥ 0.05)
#>  ───────────────────────────────────────────────────────────────────────────────
#>
#>
#>  Optimal Threshold Analysis
#>  ───────────────────────────────────────────────────────────────────────────────────────────
#>    Optimal Threshold    Sensitivity    Specificity    Youden's J    PPV          NPV
#>  ───────────────────────────────────────────────────────────────────────────────────────────
#>             12.90408      0.6491228      0.4418605    0.09098327    0.6065574    0.4871795
#>  ───────────────────────────────────────────────────────────────────────────────────────────
#>
#>
#>  Interpretation Guide
#>
#>
#>
#>  AUC Interpretation:
#>
#>
#>  0.90-1.00: Excellent discrimination
#>  0.80-0.90: Good discrimination
#>  0.70-0.80: Fair discrimination
#>  0.60-0.70: Poor discrimination
#>  0.50-0.60: Fail (barely better than chance)
#>
#>
#>
#>  Variance Equality Tests:
#>
#>
#>  p < 0.05: Reject equal variance assumption (use generalized ROC)
#>  p ≥ 0.05: Equal variance plausible (standard ROC acceptable)
#>
#>
#>
#>  Transformation Guide:
#>
#>
#>  Log: Right-skewed data (e.g., biomarker concentrations)
#>  Square root: Count data or mild skew
#>  Box-Cox: Automatic optimal transformation
#>


# }
