Multi-class ROC Analysis — multiclassroc • ClinicoPath

Multi-class ROC Analysis for evaluating diagnostic performance with 3 or more diagnostic classes. This analysis extends traditional binary ROC to handle multi-category outcomes using one-vs-rest, one-vs-one, and global approaches.

Usage

multiclassroc(
  data,
  outcome,
  predictors,
  method = "ovr",
  calculate_macro_auc = TRUE,
  calculate_micro_auc = TRUE,
  calculate_weighted_auc = TRUE,
  confidence_intervals = TRUE,
  ci_method = "bootstrap",
  bootstrap_samples = 1000,
  confidence_level = 0.95,
  pairwise_comparisons = FALSE,
  confusion_matrix = TRUE,
  class_metrics = TRUE,
  plot_roc_curves = TRUE,
  plot_method = "overlay",
  plot_diagonal = TRUE,
  random_seed = 42
)

Arguments

data: the data as a data frame
outcome: a string naming the outcome variable (must have 3+ levels)
predictors: a vector of strings naming predictor variables (continuous scores)
method: method for multi-class ROC: 'ovr' (one class vs all others), 'ovo' (all pairwise comparisons), or 'multinomial' (global probability model)
calculate_macro_auc: calculate macro-average AUC across all classes (unweighted mean)
calculate_micro_auc: calculate micro-average AUC (aggregate all predictions)
calculate_weighted_auc: calculate weighted-average AUC (weighted by class prevalence)
confidence_intervals: calculate confidence intervals for AUC estimates
ci_method: method for confidence interval calculation
bootstrap_samples: number of bootstrap samples for CI calculation
confidence_level: confidence level for intervals (default: 0.95 for 95 percent CI)
pairwise_comparisons: show detailed results for all pairwise class comparisons (OvO method)
confusion_matrix: show confusion matrix at optimal global threshold
class_metrics: calculate sensitivity, specificity, PPV, NPV for each class

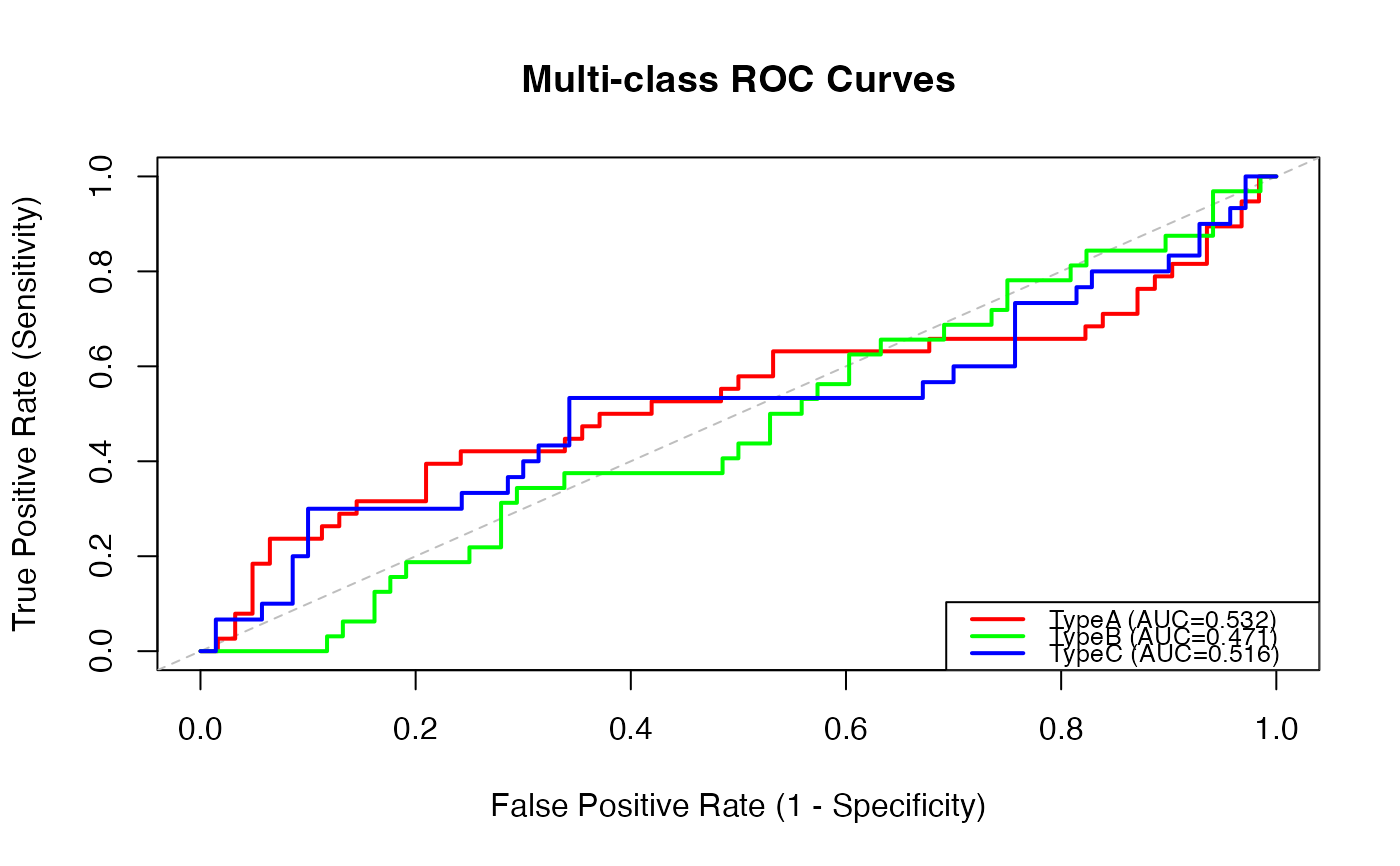

plot_roc_curves: plot ROC curves for each class
plot_method: display method for ROC curves
plot_diagonal: show diagonal reference line (random classifier)
random_seed: random seed for reproducible bootstrap sampling

Value

A results object containing:

`results$instructionsText`					a html
`results$summaryTable`					a table
`results$classAucTable`					a table
`results$pairwiseTable`					a table
`results$classMetricsTable`					a table
`results$confusionMatrix`					a table
`results$rocPlot`					an image
`results$interpretationText`					a html

Tables can be converted to data frames with asDF or as.data.frame. For example:

results$summaryTable$asDF

as.data.frame(results$summaryTable)

Details

Common applications include tumor subtype classification, disease staging with multiple levels, and AI model validation for multi-class predictions.

Examples

# \donttest{
# Example with tumor subtype classification
data <- data.frame(
  true_class = factor(sample(c("TypeA", "TypeB", "TypeC"), 100, replace=TRUE)),
  score_A = rnorm(100),
  score_B = rnorm(100),
  score_C = rnorm(100)
)

multiclassroc(
  data = data,
  outcome = 'true_class',
  predictors = c('score_A', 'score_B', 'score_C'),
  method = 'ovr',
  calculate_macro_auc = TRUE,
  confidence_intervals = TRUE
)
#>
#>  MULTI-CLASS ROC ANALYSIS
#>
#>  Multi-class ROC Analysis
#>
#>  This analysis evaluates diagnostic performance for outcomes with 3 or
#>  more classes.
#>
#>
#>
#>  Methods:
#>
#>
#>  One-vs-Rest (OvR): Each class is compared against all other classes
#>  combined
#>  One-vs-One (OvO): All pairwise comparisons between classes
#>  Multinomial: Global probability model across all classes
#>
#>
#>
#>  Averaging Methods:
#>
#>
#>  Macro-Average: Unweighted mean of per-class AUCs
#>  Micro-Average: Aggregates all predictions (better for imbalanced data)
#>  Weighted-Average: Weighted by class prevalence
#>
#>
#>
#>  Common applications: Tumor subtype classification, disease staging, AI
#>  multi-class validation
#>
#>  Multi-class ROC Summary
#>  ──────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
#>    Number of Classes    Method         Macro-Average AUC    Lower CI     Upper CI     Micro-Average AUC    Lower CI     Upper CI     Weighted-Average AUC
#>  ──────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
#>                    3    One-vs-Rest            0.5063456    0.3786915    0.6339342            0.5063456    0.3786915    0.6339342               0.5077034
#>  ──────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
#>
#>
#>  Per-Class AUC Values
#>  ──────────────────────────────────────────────────────────────────────────────────────
#>    Class    N     Prevalence    AUC          Lower CI     Upper CI     Interpretation
#>  ──────────────────────────────────────────────────────────────────────────────────────
#>    TypeA    38     0.3800000    0.5322581    0.4047351    0.6637310    Fail
#>    TypeB    32     0.3200000    0.4705882    0.3528861    0.5920990    Fail
#>    TypeC    30     0.3000000    0.5161905    0.3784532    0.6459725    Fail
#>  ──────────────────────────────────────────────────────────────────────────────────────
#>
#>
#>  Per-Class Performance Metrics
#>  ───────────────────────────────────────────────────────────────────────────────────────────────────
#>    Class    Sensitivity    Specificity    PPV          NPV          F1-Score     Optimal Threshold
#>  ───────────────────────────────────────────────────────────────────────────────────────────────────
#>    TypeA      0.3947368      0.7903226    0.5357143    0.6805556    0.4545455            0.6207447
#>    TypeB      0.3437500      0.7058824    0.3548387    0.6956522    0.3492063            0.5161487
#>    TypeC      0.3000000      0.9000000    0.5625000    0.7500000    0.3913043            0.9269109
#>  ───────────────────────────────────────────────────────────────────────────────────────────────────
#>
#>
#>  Confusion Matrix
#>  ─────────────────────────────────────────
#>    True Class    TypeA    TypeB    TypeC
#>  ─────────────────────────────────────────
#>    TypeA            17       11       10
#>    TypeB             9       12       11
#>    TypeC            10        9       11
#>  ─────────────────────────────────────────
#>
#>
#>  Interpretation Guide
#>
#>
#>
#>  AUC Interpretation:
#>
#>
#>  0.90-1.00: Excellent discrimination
#>  0.80-0.90: Good discrimination
#>  0.70-0.80: Fair discrimination
#>  0.60-0.70: Poor discrimination
#>  0.50-0.60: Fail (barely better than chance)
#>
#>
#>
#>  Method Selection:
#>
#>
#>  OvR: Best for class imbalance, interpretable per-class performance
#>  OvO: All pairwise separability, useful for similar classes
#>  Multinomial: Global model performance
#>

# }
